LAUNCH X431 HD Heavy Duty Adapter Beginners User Guide

Launch X-431 Heavy Duty HD Truck Diagnostic Adapter  works together with X431 V/V+/PRO/PRO 3/PAD II, turn your device to heavy duty scanner.

Here is a user manual for new arrived LAUNCH X431 HD Module Heavy Duty Truck Diagnostic Adapter

Incl four parts：

Part 1:Knowledge of X-431 HD Module

Part 2:How to connect OBD II vehicle

Part 3:How to connect non-OBD II vehicle

Part 4: Download and Install X-431 HD Module App

Part 5:Activate X-431 HD Module

User manual download:LAUNCH X431 HD Module Adapter user manual

Part 1:Knowledge of Launch X-431 HD Module

X-431 Heavy-duty Truck Module is a new generation heavy-duty truck fault diagnostic tool developed by Launch Tech regarding internet application on the basis of Android OS. It communicates with X-431 PRO3/X-431PAD II through Bluetooth to achieve fault diagnosis for various car models and full systems. Advantages include wide car model coverage, powerful test function, more special functions and accurate test data, etc.

Features
1. Applicable to diesel vehicle of 12V & 24V voltage; no need for battery conversion when testing 24V trucks;
2. Supports a wide range of vehicle models covering Asian, American and European etc;
3. Powerful testing function enables you to diagnose all electronic control system;
4. International design to adapt to all diagnostic sockets.

Ports and Indicators of X-431 HD Module



Technical Parameters
* Working voltage: 8~24V
* Working temperature: -15℃ ~ 60℃
* Storage temperature: -20℃ ~ 70℃
* Relative humidity: 10% ~ 80%
* Dimension: 110 mm * 178 mm * 50 mm

Part 2:How to connect OBD II vehicle

Follow the steps described below to proceed:
1. Locate vehicle’s DLC socket. The DLC is usually located 12 inches from the center of the instrument panel
(dash), under or around the driver’s side for most vehicles. If Data Link Connector is not located under
dashboard, a label should be there telling location. If the DLC cannot be found, refer to the vehicle’s
service manual for the location

2. Connect one end of the main cable to the diagnostic socket, and then connect other end to the vehicle’s
DLC (For non-16 pin DLC, you need to choose the corresponding diagnostic connector).

Part 3:How to connect non-OBD II vehicle

Choose one of the following to connect non-OBD II vehicle:
1. Via Cigarette Lighter

2. Via Battery Clamps Cable

Part 4: Download and Install X-431 HD Module App

1. Visit the LAUNCH website and download the application corresponding to X-431 HD module; Note: If downloading using the diagnostic tool please make sure Wi-Fi has good or strong signals. 2. Follow the on-screen instructions to install it. Once installation is complete, an application icon will appear on the HOME screen.

Part 5:Activate X-431 HD Module

After purchasing X-431 HD module, you have to activate it before use. Follow the steps below to proceed:

1、 Launch the application, and tap to enter;

2、 Tap “Profile” from the pull-down menu, and then tap “Connector Activation”;

3、 Input the Serial Number and Verification Code, which can be found in the included password envelope. Tap “Activate”.

Source:http://blog.obd2express.co.uk/2017/02/25/launch-x431-hd-module-heavy-duty-truck-diagnostic-adapter/

2017 Launch X431 V WINS! Old X431 Diagun III & X431 IV fail

2017 Launch X431 V price WINS at obd2express.co.uk

2017 Launch X431 V (x431 pro) WINS in firmware update!

So, it defeated and successfully replaced the olf Launch X431 Diagun III and X431 IV scan tools. Details of the new launch x431 scan tool.

Launch x431 v price:

€760 at http://www.obd2express.co.uk/

It’s the best price online

How much do you know Launch x431 v?

Launch X431 V is a new diagnostic tool released by Launch tech. It’s composed of an X-431 V pad computer, a protection sleeve, a DBScar diagnostic connector and many OBD1 to OBD2 connectors. Communicating with your car by DBSCAR connect via Bluetooth, it reads DTC and does full system diagnosis on the car through the X431 Pro Pad for full car models. So, it successfully replace X431 Diagun III or X431 IV. Meanwhile, taking advantage of mobile internet, it integrates more application and service, such as creating maintenance data base and case library, providing instant maintenance information, establishing public and private maintenance social circle etc. As a result, it builds a broad vehicle diagnostic community, which helps you to share vehicle maintenance knowledge online, exchange vehicle maintenance experience online and provide vehicle maintenance related service support online. This will be another revolution raised by Launch in the vehicle diagnosis industry.

What’s updated/improved in 2017 Launch x431 v?

Compared it with old x431 scan tools, it’s easy to find that 2017 launch x431 v has been improved in firmware only. In the aspect of function, it works as the old version.

New Launch X431 V (X431 Pro) Feature：
1 tablet with high configuration;
2 multi-point capacitive touch screen;
3 Bluetooth diagnostics;
4 online service
5 light and small;
6 multitasking on a screen;
7 WIFI support;
8 open Android platform;
9 many additional functions.

Launch x431 V Language Available:

English, German, Japanese, Russian, French,  Spanish, Korea , Traditional Chinese

2017 Launch X431 V Function:

1. Full Diagnose + Special Function:

X431 V can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and China. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.

- OBDII Diagnosis: Read DTCs, Clear DTCs, Read datastream, Special functions etc;

- Special function: BMW idle study, BMW injection rate adjustment, BMW battery replacement, Nissan matching key.

2. Connecting by Bluetooth

Bluetooth Distance: 10M (Without Obstacle)

X431 V communication via bluetooth, very easy to use.  X431 V Pad computer specially designed for Android platform with clear and user-friendly interface. X431 V Pad computer equipped with an exclusive X-431 V protection sleeve to prevent it from being damaged;

3. Browser:

Built-in Wi-Fi module makes surfing on the internet freely;

4.Settings:

To configure your personalized X-431 V through it;

5. Search:

Enables you to locate your target quickly and conveniently;

6. Email:

Allows you to send and receive email. External POP3 or IMAP email account for some common Web email service provider can be added;

7.File Manager:

You can manage the files or downloaded files stored in SD card efficiently;

8. Other Additional Functions:

Alarm, calendar and calculator etc.

9. Applications:

Other android based applications can be customized to install or uninstall.

Launch x431 v Car List:

For Acura, for Changan, for Daweoo, for Gaz, for Hafei, for Huachen, for Jiao, for Lexus, for Xiali, for Xinkai, for Bez,for Fiat, for Holden, for Maruti, for Opel, for Peugeot, for Saab, for Ssangyong, for Tata, for Changhe, for Flyer, for GMSA, for Infiniti, for Mahindra, for Perodua, for Proton, for Qirui, for Tlisuzu, for Zhongshun, EOBD2, for Euroford, for G-M, for Jagar, for Renault, for Smart, for Sprinter, for USA for Ford, for VAZ, for VW, for Changcheng, for Dacia, for Ford, for HaoQing, for Jinlong, for Liuwei, for Rover, for ZhongTai, for ZhongXing, for HM, for Isuzu, for Jacty, for JPIsuzu, for Mazda, for Seat, for Skoda, for Suzuki, for BW, for Daihatsu, for Mitsubishi, for Porsch, for Toyota, for Volvo, for Adi, for Chrysler, for Citroen, for Hyundai, for Kia, for Lancia,for Landrover,for Nissan, for Romeo and for Sbaru.

Launch x431 pro how to use:

Here is the communication diagram for reference.

2017 new Launch X431 V (X431 Pro) Parameter:

Operating System: Android

CPU: Quard Core 1.3GHz

Battery: 4290mh, rechargeable polymer lithium battery

Standby time: it is subject to the using environment. Generally it can keep working for 4 hours.

Extension memory card: 32G Micro SD(TF) card supported

Memory: 1MB

Storage capacity: 2GB

LCD: 7.0 inch

LCD resolution: 1280X800

Touch screen: 5 points capacitive touch screen

Cameras: 2 mega rear and 5 mega front

Wi-Fi: supported

Bluetooth: supported

Working temperature: -10 ~ 55 (14°F to 131°F)

Storage temperature: -20 ~ 70 (-4°F to 158°F)

x431 V DBSCAR Connector Parameter:

Working voltage: 9 ~15V

Average working current: about 35mA

Standby current: about 25mA

Working temperature: -20 to 55 (-4°F to 131°F)

Storage temperature: -30 to 70 (-22°F to 158°F)

Storage humidity: <80%

Working humidity: <60%

Net weight: about 26g

Lauch x431 v Packing List:

X-431 v pad computer

Password envelope

X-431 v protection sleeve

DBScar diagnostic connector

OBD II extension cable

Cigarette lighter cable

Power adaptor

USB data cable

Non-16pin connector

Source:http://blog.obd2express.co.uk/2017/02/24/launch-x431-v-wins-in-firmware-price/

How to use Launch M-Diag Lite on BMW 520Li 2014?

This is a test report of a Launch M-Diag Lite obdii scanner. It works perfect on 2014 BMW 520Li (F18) in obdii diagnosis and special functions. Here you go.

Scan tool: Launch M-Diag Lite OBDII diagnostic tool

Model: BMW 520Li 2014

Phone: a HUAWEI smart phone

System: Android

Before using M-Diag Lite, please firstly download M-diag APP which can be found on IOS App Store and Android APP on Google Play, then install APP-> complete registration-> click on BMW car software to download

Select BMW V49.50 and confirm

Connect Bluetooth (no password needed; if it needs it, try 1111 or 0000)

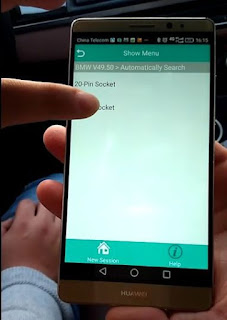

Choose Automatically search-> 16 pin socket

2014 BMW 520Li (F18) vehicle info

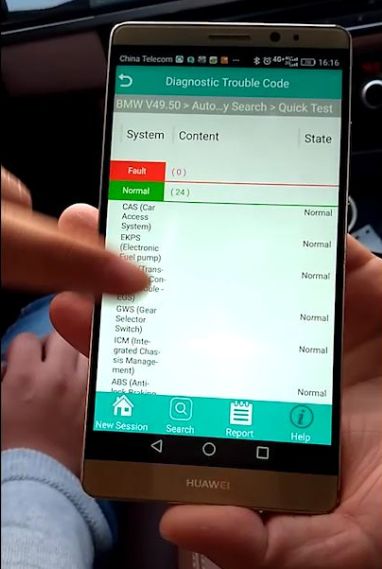

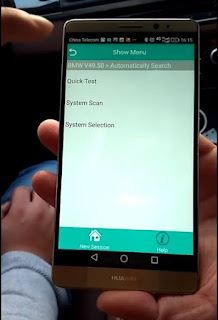

Choose Quick Test

Tap ECM

Choose Read fault codes

Read data stream-> Automatic engine start stop function

Select all then tap confirm

Choose Graph

Back to menu

Choose Fuel system-> Fuel temperature

Choose Page, then confirm

Choose Graph

Back to menu

Choose Fault report

Back to menu

Choose Special function

Choose 3 series...

Launch M-Diag Lite scanners support multiple special function software and actuation tests incl. Oil / Service reset,  ABS bleeding, IMMO & key programming, throttle body adaptation, brake pads, steering angle reset, battery matching, DPF regeneration, Injector coding

source:http://blog.obd2express.co.uk/2017/02/22/m-diag-lite-tested-yes-on-bmw-520li/
